Military Sword Display Cases: Scabbards, Guards and Shadow Boxes

Choose a military sword display around the complete sword, its scabbard and any keepsakes you intend to retain. Blade length alone misses the guard, grip, knots, curved outline and separation between objects. A long rectangular case is a candidate only after its usable space and access are understood.

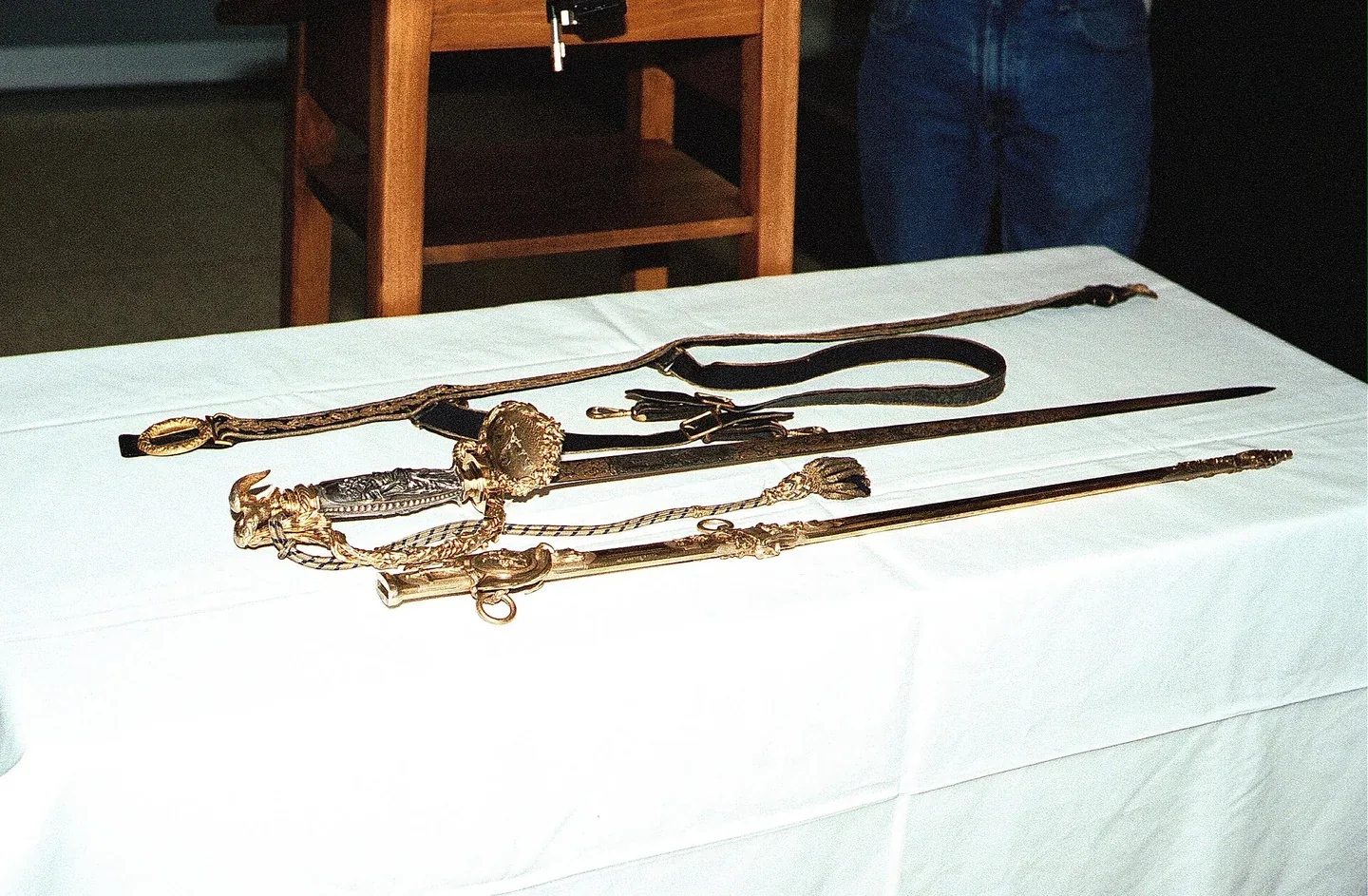

Cover photograph: U.S. Navy photo by Cliff Maxwell, 12 January 2004, showing the historic Worden sword with its belt and scabbard. The file-specific source and license record identifies a public-domain US Navy work and Public Domain Mark 1.0. The full image was proportionally resized and compressed. This historical uncovered arrangement illustrates separate objects, not a recommended mount or modern case fit.

One sword can require more than one object position

Decide whether the sword remains in its scabbard or whether both appear separately. Add the sword knot, belt, presentation plate and any flag, medals or photographs. Photograph the proposed group from above and from the side, keeping a separate identity record for each item.

A curved scabbard may extend into space that looks empty beside a straight blade. The guard or grip can establish the deepest part of the group. A second sword adds another complete profile, not simply another blade width. Record the intended orientation before comparing a horizontal cabinet, vertical case or custom shadow box.

Read the format before comparing the dimensions

These pages describe products and formats, not five independent physical tests. The Flags Connections figures above come from its first Army, Navy and Air Force single-case descriptions. Repeated service names and similar catalogue descriptions do not establish separate geometry or comparative quality.

Do not choose between contradictory measurements yourself

The Flags Connections two-sword description lists inside W44 × H17 × D3.25 in and outside W45 × H18 × D4 in. Later text on the same card gives an inside size of 44.5 × 18 × 3.5 in. These are conflicting statements, not a rounding difference to silently repair. Ask for the current variant’s drawing before ordering around either set of figures.

Likewise, its single-case prose mentions a glass front while the specification says acrylic. Ask which panel is actually supplied. The listed empty weights of 14 lb and 17 lb do not provide a permissible loaded weight, a wall-fixing rating or approval to move a filled cabinet.

A second example, Home Display Cases’ RWB1448053012 case, lists an exterior of 18 × 52 × 5.5 in, including a stated 1 in frame height, and an interior of 12.5 × 46.5 × 3.25 in. The axes are not labelled in the text read. Preserve the order supplied and request arrows showing the finished opening, receiving area and clear depth; do not assign the figures to your sword by assumption.

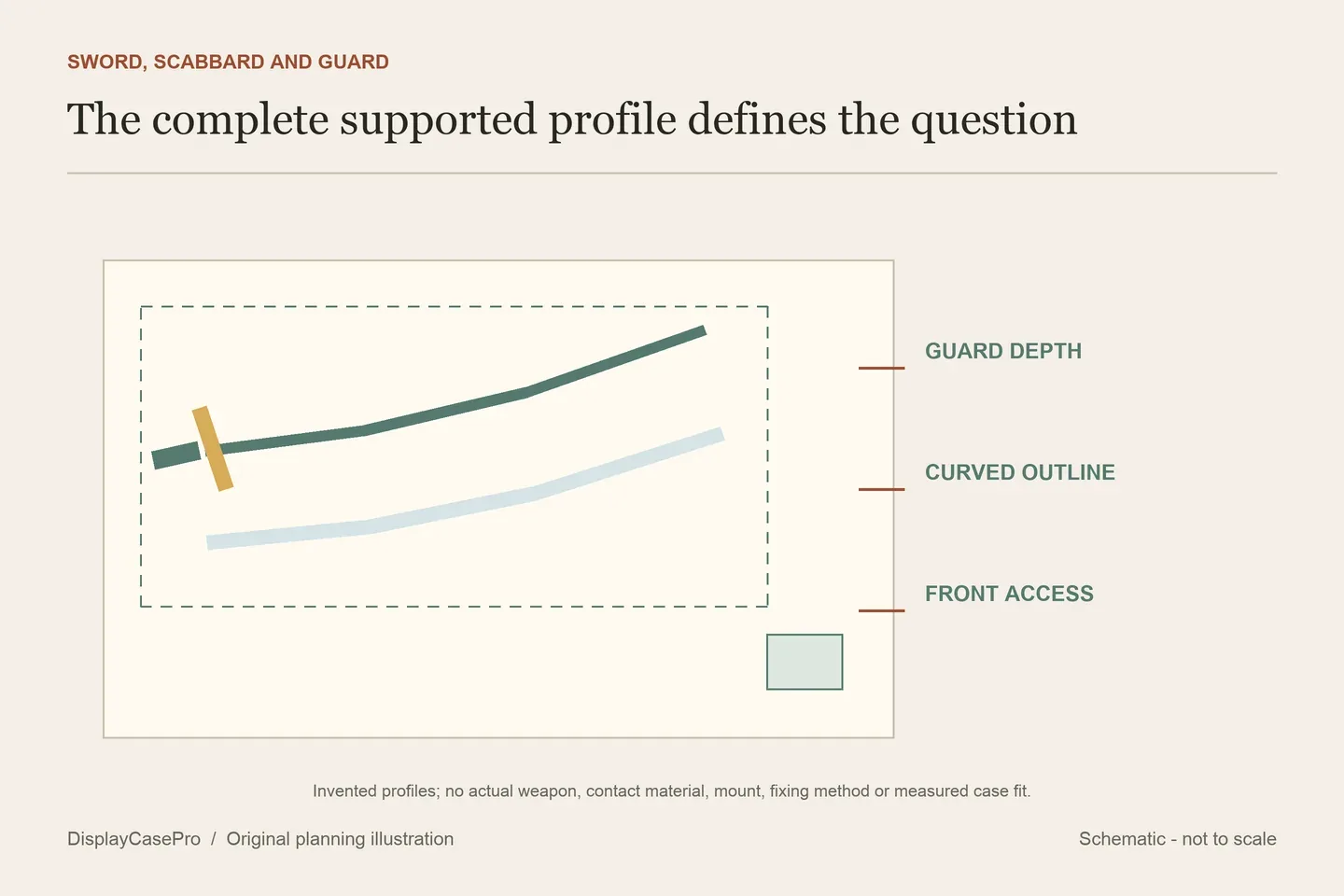

Record the whole supported outline, including the guard

Use the intended arrangement to identify the longest, widest and deepest points. Include the planned supports in the profile, while keeping their contact method an unresolved specialist question until confirmed. A visible front rectangle may be larger than the space available behind a frame, beside a hinge or around a latch.

For a mixed retirement display, record the actual folded flag or its retained holder independently. GWoodshop’s description refers to a “3x5” flag without a unit in the text read. That phrase cannot supply a folded flag profile or justify assuming feet. A photograph, certificate or medallion also needs its own position rather than occupying leftover space after purchase.

The general measurement guide explains recording a complete profile. For a sword group, the additional work is keeping the curve, guard projection, separate scabbard and chosen supports in the same drawing. A small positive difference between two catalogue numbers is insufficient evidence when their axes or boundaries remain unknown.

Confirm how the front opens and the objects are supported

The Home Display Cases example describes a top piano hinge and bottom brass clasp, with wall brackets and object mounts. That establishes front access, but not a universal installation method or a verified support arrangement for your sword. Request the intended mounting documentation and item-contact details for the actual weight, materials and group.

Keep case attachment to the wall separate from object support inside the case. Ask which components are supplied, which substrate or fixing conditions their instructions require and how the opening panel clears nearby furniture. Do not use a carrying-case category, a delivery photograph or the presence of brackets as permission to relocate a loaded display.

Download the sword-display worksheet to record the sword/scabbard state, curved profile, guard, keepsakes, axis-labelled dimensions, conflicting statements, confirmed panel material and access questions. For a valuable or historically significant object, have the proposed contact materials and supports assessed before treating a decorative case as a preservation solution.

Common questions

Will an Army or Navy sword case fit every service sword?

No universal fit follows from the service name. Compare the exact complete group with the selected case’s confirmed cavity and opening, including the guard, scabbard and supports.

Does a two-sword capacity include both scabbards?

Read the specific description and obtain its layout. The Flags Connections card describes two swords with scabbards or four in scabbards, but also contains conflicting interior figures. That needs resolution rather than a capacity claim copied into an order.
